Central air conditioners circulate cool air through a system of supply and return ducts. Supply ducts and registers (i.e., openings in the walls, floors, or ceilings covered by grills) carry cooled air from the air conditioner to the home. This cooled air becomes warmer as it circulates through the home; then it flows back to the central air conditioner through return ducts and registers.
Chillers
In this system Chilled water is for condensation, in Chiller Shell & tube Evaporator are used. Evaporator may be DX type or Flooded type.

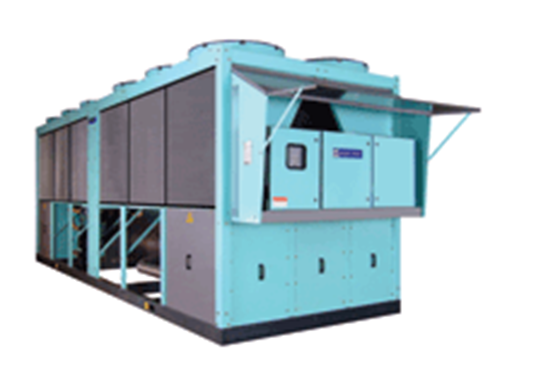

Air Cooled Screw Chiller R134a
Features
Range:
- With single compressor: 110, & 140 TR With double compressors: 180, 220, 250 and 280 TR With triple compressors: 330, 390 & 420 TR
- Highly efficient and low noise compressors
- Tested in accordance with ARI/European standards
- Stepless capacity control, from 25% to 100% making it suitable for varying load applications and efficient under part load conditions.
- Refrigerant liquid to liquid type heat exchanger provided for Economiser system. Liquid refrigerant is sub-cooled to enhance the capacity thereby reducing power consumption and enhancing the Coefficient of Performance.
- Oil cooler and liquid injection for high ambient operation
- Shell and tube evaporator has been built using imported, doubly enhanced and highly efficient finned copper tubes.
- RS 232 and RS 485 ports for remote connectivity, fault indication and status facility.
- BMS compatibility with Modbus as a standard feature. Optional translators available for compatibility with JC, N2, BACnet.
Water Cooled Screw Chillers - R134a
Features
Range:
- AHRI Certified Flooded Chillers (705 to 1395 KW)
- Flooded Chillers (385 to 625 KW)
- DX Chillers (345 to 665 KW)
- Series I: 705 to 1395 KW (AHRI certified series) - 6 models in capacities of 705, 755, 875, 1065, 1225 & 1395 KW. This series has been certified by AHRI in compliance with the certification sections of the latest issue of AHRI Standard 550/590.
- Series II: 385 to 625 KW - 3 models in capacities of 385, 535 & 625 KW.
- All the Flooded Chillers have been designed to exceed ASHRAE 90.1 and meet the ECBC (Energy Conservation Building Code) norms as stipulated by the Bureau of Energy Efficiency (BEE), making them ideal for Green Building applications.
- 345 to 665 KW

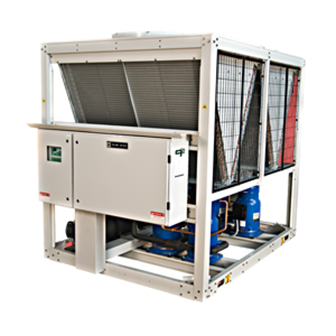

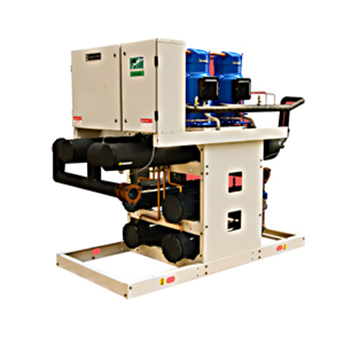

Scroll Chillers - Air & Water Cooled - R22 & R407C
Air Cooled Scroll Chiller Water Cooled Scroll Chiller
Available in 24 TR - 80 TR Available in 11 TR - 85 TR
Features
- Wide range of models in R22 and R407C refrigerant options
- Air Cooled: 10, 24, 36, 48, 60 & 80 TR
- Water Cooled: 11, 26, 39, 52 & 85 TR - These chillers are pre-wired, fully charged and run-tested at the factory thereby making it easy and less time-consuming for installation and start-up.
- Energy-efficient and reliable compressors
- Capacity modulation in steps Lower electrical infrastructure cost Quiet operation Mega power saving for tandem models (only in air cooled models) Microprocessor controller packed with intelligent features
Magna Smart Centrifugal Chillers
Available in 90 TR - 450TR
Features
- Highly energy efficient
- IPLV is as low as 0.39KW/TR
- Oil-free technology
- Eco-friendly
- Low noise and vibrations
- Compact design
- Turbocore compressor
- High performance cooler and condenser
- Precise electronic expansion valve
- User-friendly controller
Air Handling Unit - Double Skin Air Handling Unit
Engineered to deliver High Indoor Air Quality
Introducing Double Skin Air Handling Units completely redesigned with a "Screwless Cabinet" construction.
As the name suggests, these units have a casing made of sandwiched panels, resulting in low noise, sturdy construction and better thermal insulation.
Taper wedges are used for fixing and locking the insulated panels with aluminum frame.
Advantages of "Screwless Cabinet" Construction:
- Reliability and Longer life
- Better Aesthetics
- Engineered to deliver High Indoor Air Quality
- Low Noise
- Energy Efficiency
- Ease of Assembly and Maintenance
- Reduces Air Bypass in Filter Section
- Standard Filter Sizes and Compact Design

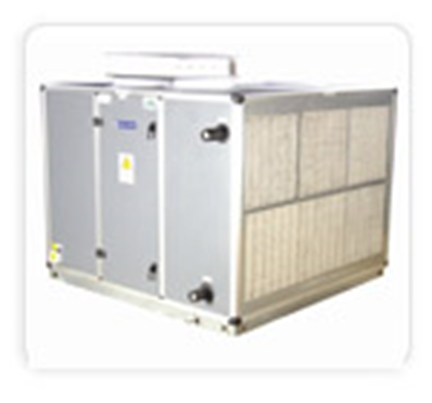

Horizontal Floor Mounted Air Handling Units
Available in 3250 CMH to 60500 CMH
Features
- Quality Range of 37 models with an air flow range of 3250 to 60500 CMH
- AMCA certified Fans with higher efficiency and low noise levels View
- Port helps to monitor fan and motor status and Marine Lamp provides easy visibility
- Drain pan is made of powder coated galvanized sheet steel and insulated with a closed cell elastomeric insulation to avoid surface condensation
- Filter sizes standardized to the internationally recognized standard of 4 sizes

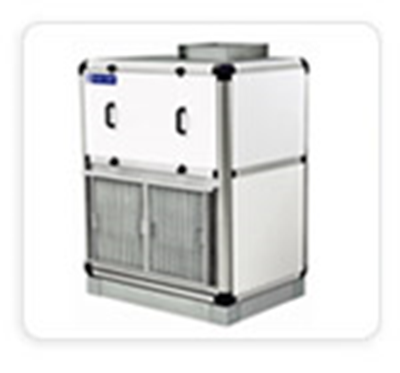

Vertical Air Handling Units
Available in 3500 CMH to 24500 CMH
Features
- These units are designed to occupy lesser floor space than the horizontal units and are preferred when floor space is a constraint
- Available in 10 models with airflow ranging from 3500 CMH to 30280 CMH
- Predominantly used for applications where multiple units are required to aircondition a floor constrained by ceiling heights, duct sizing, floor space and so on

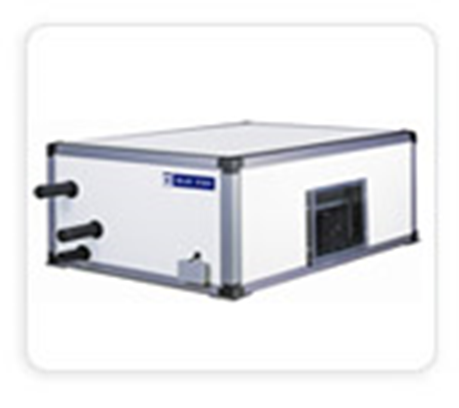

Ceiling Suspended Air Handling Units
Available in 1770 to 13568 CMH
Features
- Can be suspended from the ceiling and hence require no floor space
- Available in 18 models with air quantity ranging from 1770 CMH to 13568 CMH
- Belt Driven and Direct Driven options
- Noiseless units and can be tucked away above the false ceiling in the conditioned area
- Lesser installation costs
- Units are unobtrusive giving flexibility to the design of the interior

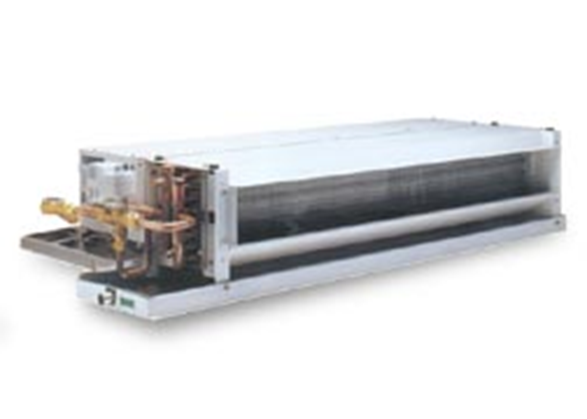

Fan Coil Unit
Apart from being reliable and trouble-free, the unique low noise feature makes it the quietest in its category.
Its low height of just 266 mm makes it compact and perfect for even low ceiling heights.
Available in 1, 1.5, 2, 2.5, 3 & 3.5 TR
- Whisper quiet operation and energy efficient
- Ultra low height
- Detachable fan panel ensures ease of service of fan motor and coil
- High indoor air quality
- Galvanized powder coated cabinet
- High quality stainless steel drain pan (Galvanized steel finish option also available)
- Options available in Fan Coil Units:
- 3 row cooling
- 4 row cooling
- 3 row cooling and 1 row heating
